 4th-gen Puck® Motor Controllers


Purchase a Puck or Dev Kit now →


NO SPACE? NO PROBLEM

Barrett’s latest advancement comes in the form of two high-performance Puck® P4’s: both a 16mm and 37mm version. With patented dual iSense control and onboard magnetic encoder, motor control has never been so sophisticated, yet so simple. This revolutionary design features snap-on connectors and daisy chain wiring for quick and easy integration with any low space, high-performance application.

The P4-16™ is designed to fit seamlessly in any situation. At just 1.2 cubic cm, 2 grams, and up to 1/4KW drive power, this motor controller elegantly balances power and size. While this motor controller runs complex space-vector commutation and constant high speed computations, implementation is about as simple as it gets.

While the P4-16™ masters the art of size and strength, the P4-37™ is designed to push the boundaries of motor control without all the bulky electronics. At a modest 12.5 cubic cm, 16 grams, and 1.75KW peak drive power, this small motor controller is built for big output. With up to 160V input, and over 10A peak output, the P4 - 37™ drives motors at both higher speeds and higher torques. This design fits perfectly in high-speed and high-payload applications, like Barrett’s own Ultra-High-Speed WAM 3.0.




Purchase a Puck or Dev Kit now →

Features





  • High speed CANopen communication

  • 5 Wire Bus Topology: 2xCAN, Bus Voltage, 12V, and GND

  • Up to 31 controllers per bus

  • Built in magnetic encoder

  • 5V and 3.3V auxiliaries outputs

  • Dual iSense current sensor

  • Space-Vector Commutation

  • 32-bit floating point processor

  • Low torque ripple

  • Quiet, fan-less operation

  • Internal temperature sensors

  • In-system field upgradeable firmware

  • Digital Hall-array feedback

  • Adjustable PWM frequency (up to 100KHz)

  • Dual Analog Inputs (16-bit)

  • Up to 6 Digital I/O

  • External Encoder Capable: SPI or Quadrature

  • SPI Master Peripheral Support

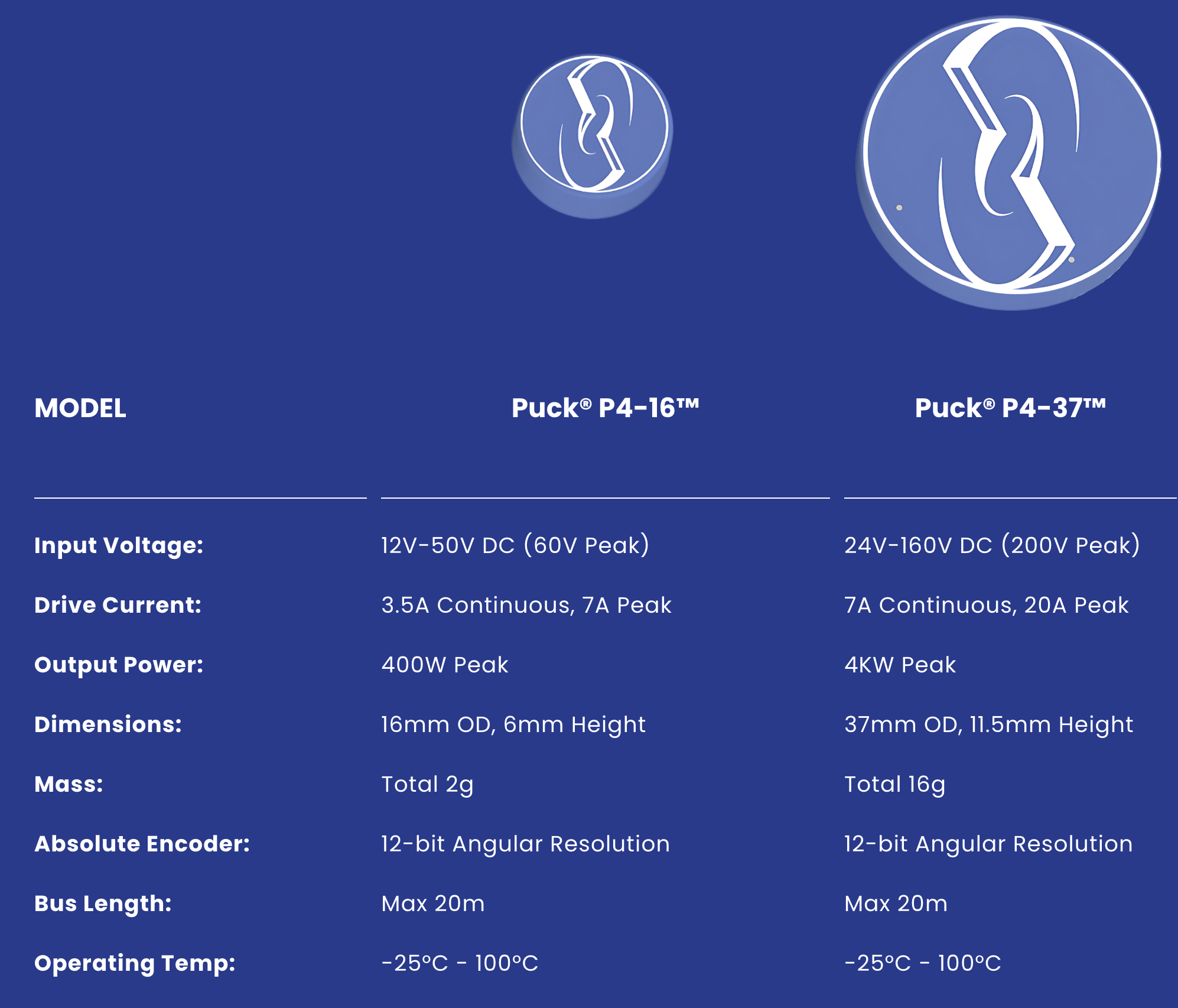

Specifications




MODEL


Input Voltage:

Drive Current:

Output Power:

Dimensions:

Mass:

Absolute Encoder:

Bus Length:

Operating Temp:

Puck® P4-16™


12V-50V DC

2.5A Continuous, 5A Peak

250W Peak

16mm OD, 6mm Height

Total 2g

12-bit Angular Resolution

Max 20m

-25°C - 100°C

Puck® P4-37™


24V-160V DC

5A Continuous, 10.9A Peak

1,750W Peak

37mm OD, 11.5mm Height

Total 16g

12-bit Angular Resolution

Max 20m

-25°C - 100°C



Purchase a Puck or Dev Kit now →


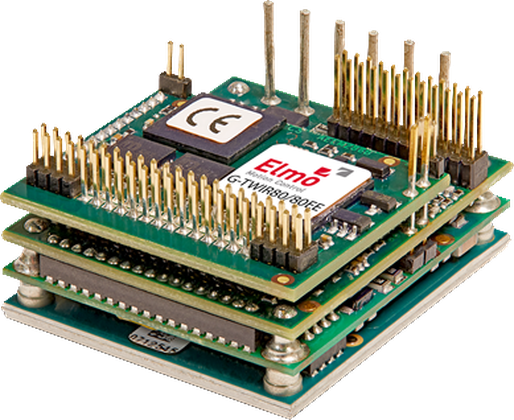

 Competitor Comparisons

Small but Mighty

The Puck improves performance, efficiency, and accuracy (while reducing volume 10x!)

The Puck® P4-16™ combines power and elegance with its compact design and sophisticated motor control. Its Daisy Chain topology reduces wiring and enables a network of up 31 Pucks® per bus. With on-board encoder, the P4-16™ eliminates signal degradation, power loss, and cable bulk inherent to standard motor-control.

At just 6mm tall, the P4-16™ fits snugly against the back of any motor. Just snap the Puck into place, and let decades of Barrett engineering handle the rest.

With 250W of power, heat can be a challenge. With built in heatsink and an operating range of -25°C to 100°C, the P4-16™ offers near silent, fan-less performance without compromising speed or payload.

Please contact Barrett's experts at sales@barrett.com to see if the Puck® P4-16™ is a good solution for your OEM application.

Compact, Competitive

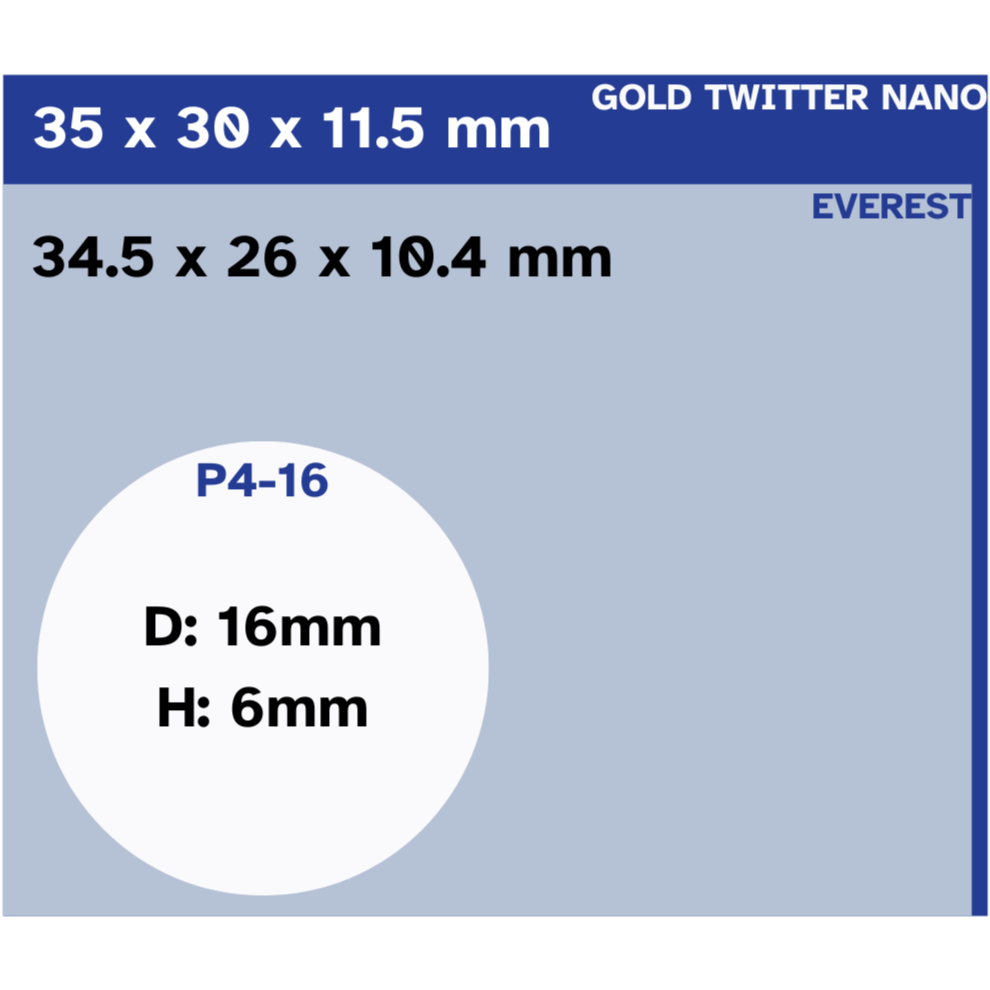

With a diameter of 16mm, the P4-16 Puck is 2-3x smaller when viewed from the top.
