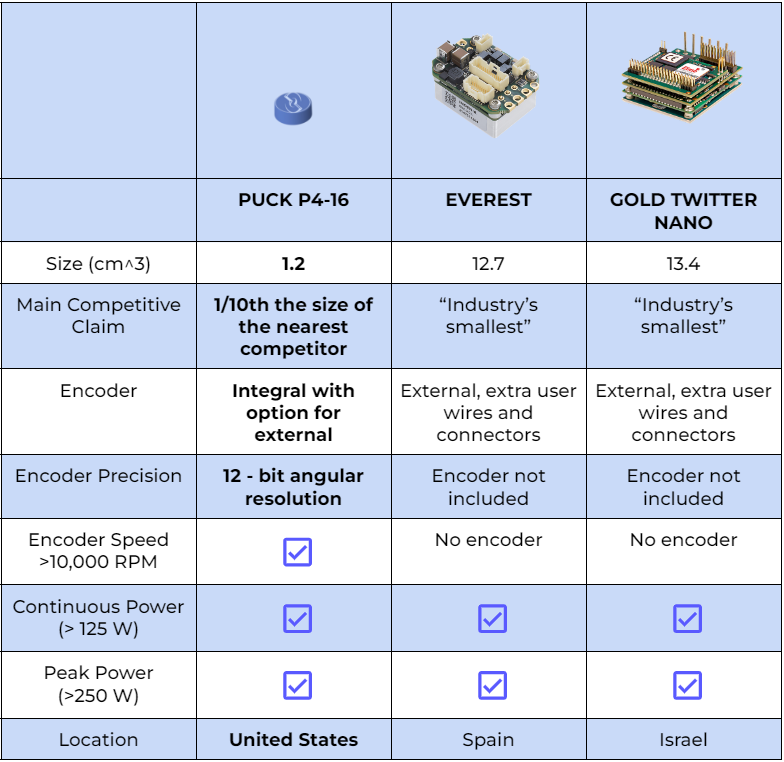

Competitor Comparisons
Small but Mighty
The Puck improves performance, efficiency, and accuracy (while reducing volume 10x!)
The Puck® P4-16™ combines power and elegance with its compact design and sophisticated motor control. Its Daisy Chain topology reduces wiring and enables a network of up 31 Pucks® per bus. With on-board encoder, the P4-16™ eliminates signal degradation, power loss, and cable bulk inherent to standard motor-control.
At just 6mm tall, the P4-16™ fits snugly against the back of any motor. Just snap the Puck into place, and let decades of Barrett engineering handle the rest.
With 250W of power, heat can be a challenge. With built in heatsink and an operating range of -25°C to 100°C, the P4-16™ offers near silent, fan-less performance without compromising speed or payload.
Please contact Barrett's experts at sales@barrett.com to see if the Puck® P4-16™ is a good solution for your OEM application.
Compact, Competitive
With a diameter of 16mm, the P4-16 Puck is 2-3x smaller when viewed from the top.
